TECHNICAL SPECIFICATIONS

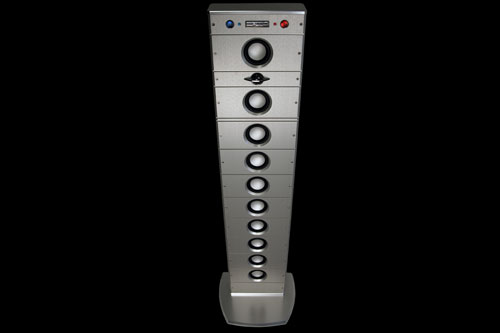

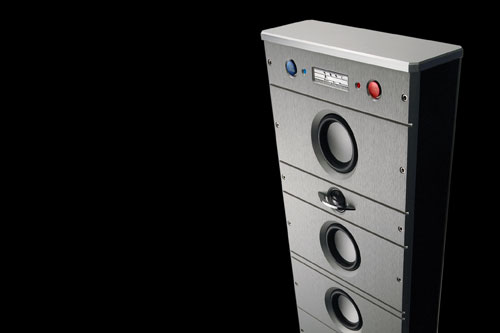

System Type: Active Tri-Amplified Stereo Loudspeaker System with DWC•Aphex audio enhancement circuitry, DSP signal management and optional DWC•Wireless transmission system. The complete Art.Studio stereo system consists of two matching powered, floor-standing speaker towers. Art.Studio is an ideal system for home and office use to replace a conventional HiFi system.

Primary signal input is via RCA inputs and optional wireless streaming of music via optional DWC•Wireless transmission dock system. Dock allows wireless transmission of iPod, computer, CD, radio and all audio signal sources. Solid aluminum construction.

SPECIFICATIONS (Per Tower)
Enclosure:
Sealed speaker section. Machined aluminum 6061 T6 billet.

Enclosure Finish:
Anodized plating.

Fasteners:
Stainless Steel.

Driver Compliment:
Tweeter: 1 X 25mm (1") damped soft dome.
Midrange: 2 X 89mm (3.5") underhung radially charged neodymium magnet assemblies.
Woofer: 8 X 89mm (3.5") underhung radially charged neodymium magnet assemblies.

Amplifier Compliment:
Tweeter Amplifier: 25 Watt RMS into 8 Ohms. Discrete digital amplifier.
Midrange Amplifier: 50 Watt RMS into 8 Ohms. Discrete digital amplifier.
Woofer Amplifier: 250 Watt RMS into 2 Ohms. Discrete digital amplifier.

Amplifier Operating Class:
Enhanced performance PWM Class D.

Input Impedance:
30k Ohm.

Crossover frequencies:
200Hz, 2kHz.

Frequency Response:
30 Hz - 22 kHz (38 - 19kH +/- 2.5dB).

Input Signal Connections:
Master Tower: Two stereo unbalanced line in (RCA).
Slave Tower: Three channel balanced in from Master. Signal input controlled with rotary volume attenuator.

Outputs:
Stereo line out for subwoofer or second room (RCA).

Input Power Connection:
Grounded IEC Style. Front mounted master power switch.

Input Power Requirement:
Selectable 100-130 Volts & 200-240 Volts 50/60 Hz.

Status Indicators:
2X Front panel mounted LED master power indicator and DWC•Aphex indicator.

Regulatory:
CE compliant.


DIMENSIONS (PER TOWER)
Height: 124.4 cm (49")
Width: 25.4 cm (10")
Depth: 8.25 cm (6.375")
Plinth: 1.9 cm H x 35.6 W x 28.6 D (0.75 x 14 x 11.25 in.)

WEIGHT (PER TOWER)
29.54 kg (65#)


David Wiener Collection subscribes to a policy of continuous improvement. As a result, specifications may change without prior notice. DWC Art.Engine Produced under license of Ferrari SpA. FERRARI, the PRANCING HORSE device, all associated logos and distinctive designs are trademarks of Ferrari SpA. iPod is a trademark of Apple Computer.
